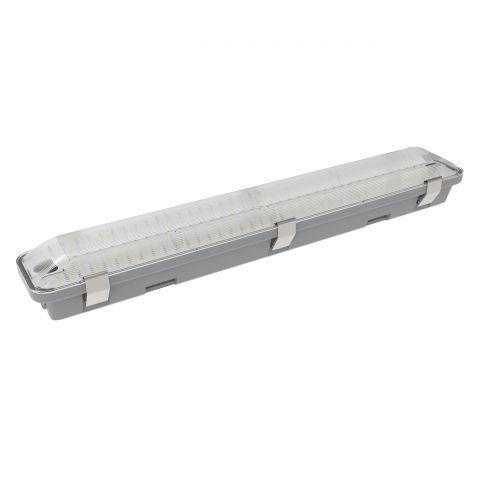

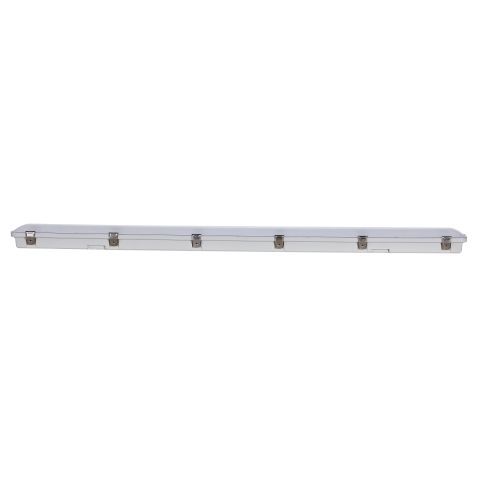

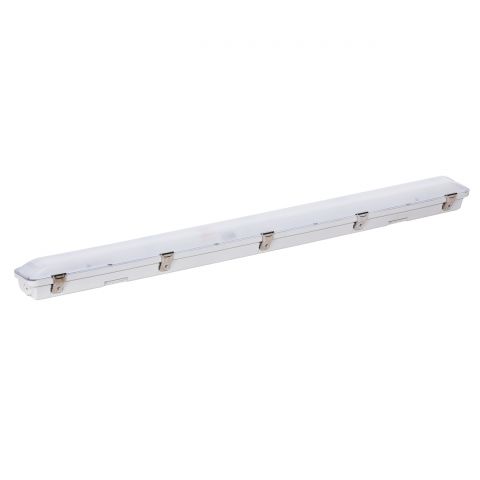

ORO SFERIS CCT
Very high degree of impact resistance IK08, tightness at the IP66 level and exceptional light efficiency of 170lm/W, dimmable and white light color setting (CCT) - all this is possible thanks to the hermetic SFERIS CCT luminaire, a luminaire for special tasks. If you are looking for lighting for warehouse halls, exhibition areas, tunnels, gas stations, airports, railway stations, bus stops - the SFERIS CCT luminaire will be a hit. It can also be used in the subway, buses, trains or indoors.
Application
Lighting of storage halls, exhibition halls, car parks, tunnels, petrol stations, airports, railway stations, public transport stops; for use also in the underground, on buses and trains.
Files to download
| Name | Index | EAN code | P [W] |  | n [lm/W] |  |  | ∢ [°] | CRI | Dimension [mm] | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ORO SFERIS LED 20W CCT S-DIMM | ORO33162 | 5905972140080 | 20 | 3400 / 2870 / 2570 / 2230 | 170 | 3000 / 4000 / 6500 | 0,9 | 120 | >85 | 645 x 96 x 82 | 920 |
| ORO SFERIS LED 38W CCT S-DIMM | ORO33163 | 5905972140097 | 38 | 6460 / 5290 / 4500 / 3400 | 170 | 3000 / 4000 / 6500 | 0,95 | 120 | >85 | 1245 x 96 x 82 | 1570 |
| ORO SFERIS LED 54W CCT S-DIMM | ORO33164 | 5905972140103 | 54 | 9180 / 7950 / 6770 / 5480 | 170 | 3000 / 4000 / 6500 | 0,95 | 120 | >85 | 1545 x 96 x 82 | 1920 |
What distinguishes this hermetic SFERIS CCT luminaire with an integrated light source? First of all, luminous efficiency of 170lm/W, high power factor PF>0.9. Thanks to the possibility of dimming and setting the white light color, you can not only save a lot on your bills, but also personalize it depending on the needs of a given room. The lampshade and housing made of polycarbonate, resistant to UV and mechanical damage, are perfect for outdoor installation. The use of the highest quality components and efficient diodes allowed for a five-year warranty on the product.
This waterproof and dustproof luminaire is designed for linear installation, with the possibility of mounting up to 24 luminaires in a line. Possible surface mounting as standard and suspended mounting as an option. The mounting bracket is adjustable.
